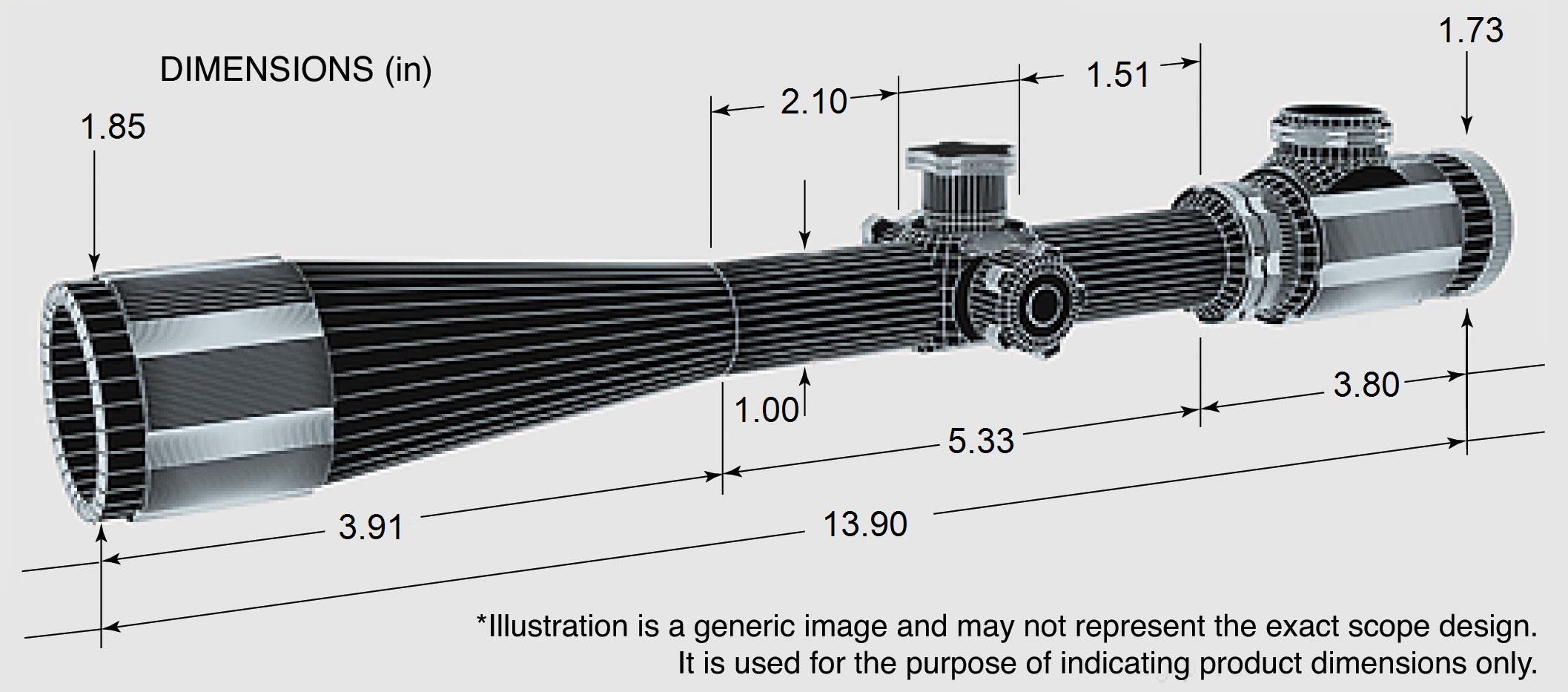

DIMENSIONS (in)

    TECHNOLOGIES

Weight 32.27 lbs
MAGNIFICATION LOW:

4.5X

MAGNIFICATION HIGH:

14X

OBJECTIVE LENS DIA. (mm):

44

ADJUSTMENT GRADUATION (MOA):

1/8

LENS COATING:

Fully Coated

W/E ADJUSTMENT RANGE:

35

EYE RELIEF (Inches):

3.7 – 4

FOV LOW @ 100' (ft):

21.6

FOV HIGH @ 100' (ft):

7

PARALLAX SETTING (yds):

10 to Inf.

ADJUSTABLE OBJECTIVE:

Yes

SIDE PARALLAX ADJUSTMENT:

No

RETICLE TYPE:

17 SM

FOGPROOF:

Yes

SHOCKPROOF:

Yes

WATERPROOF:

Yes

RINGS / MOUNT INCLUDED:

No

COLOR:

Matte Black

WARRANTY:

Limited One Year

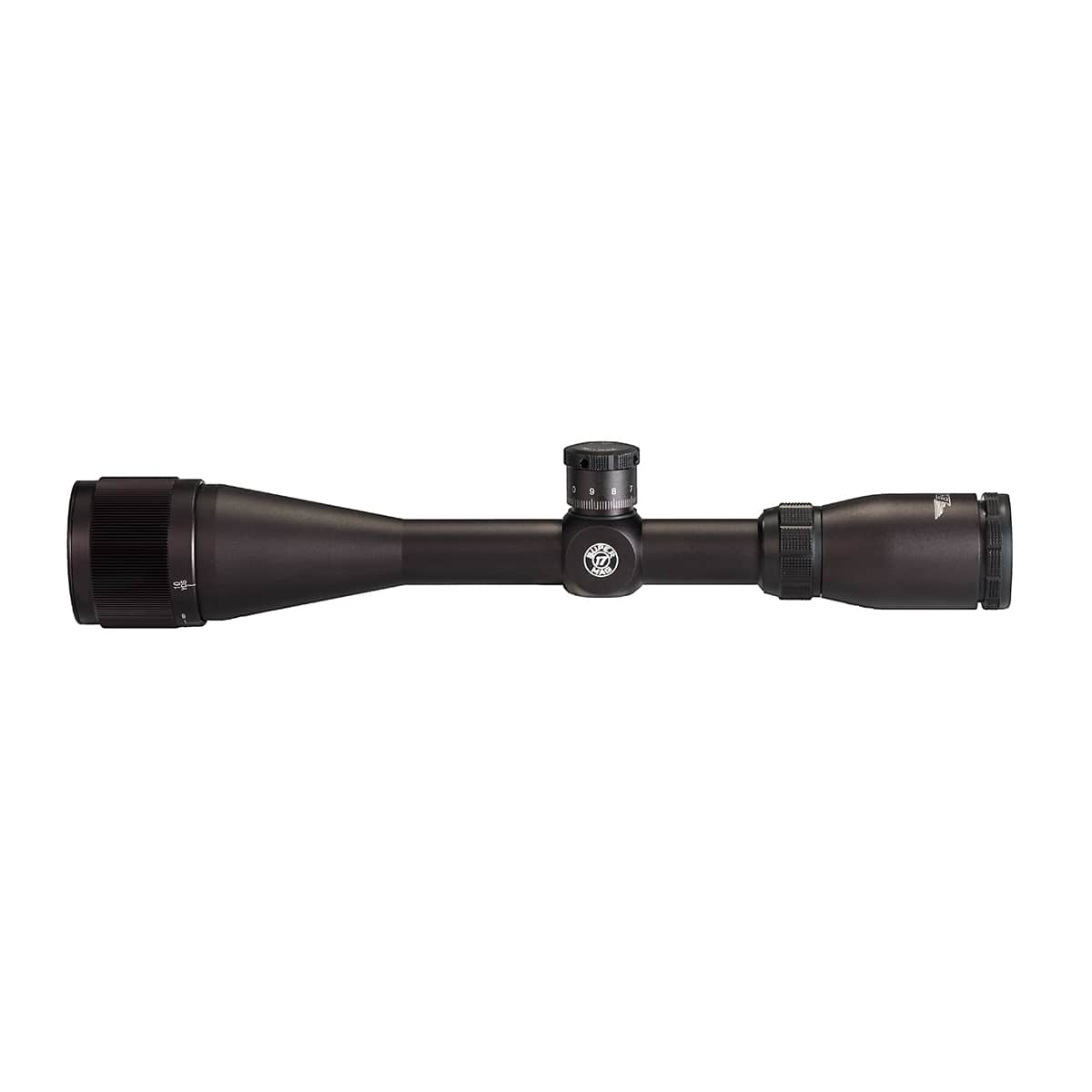

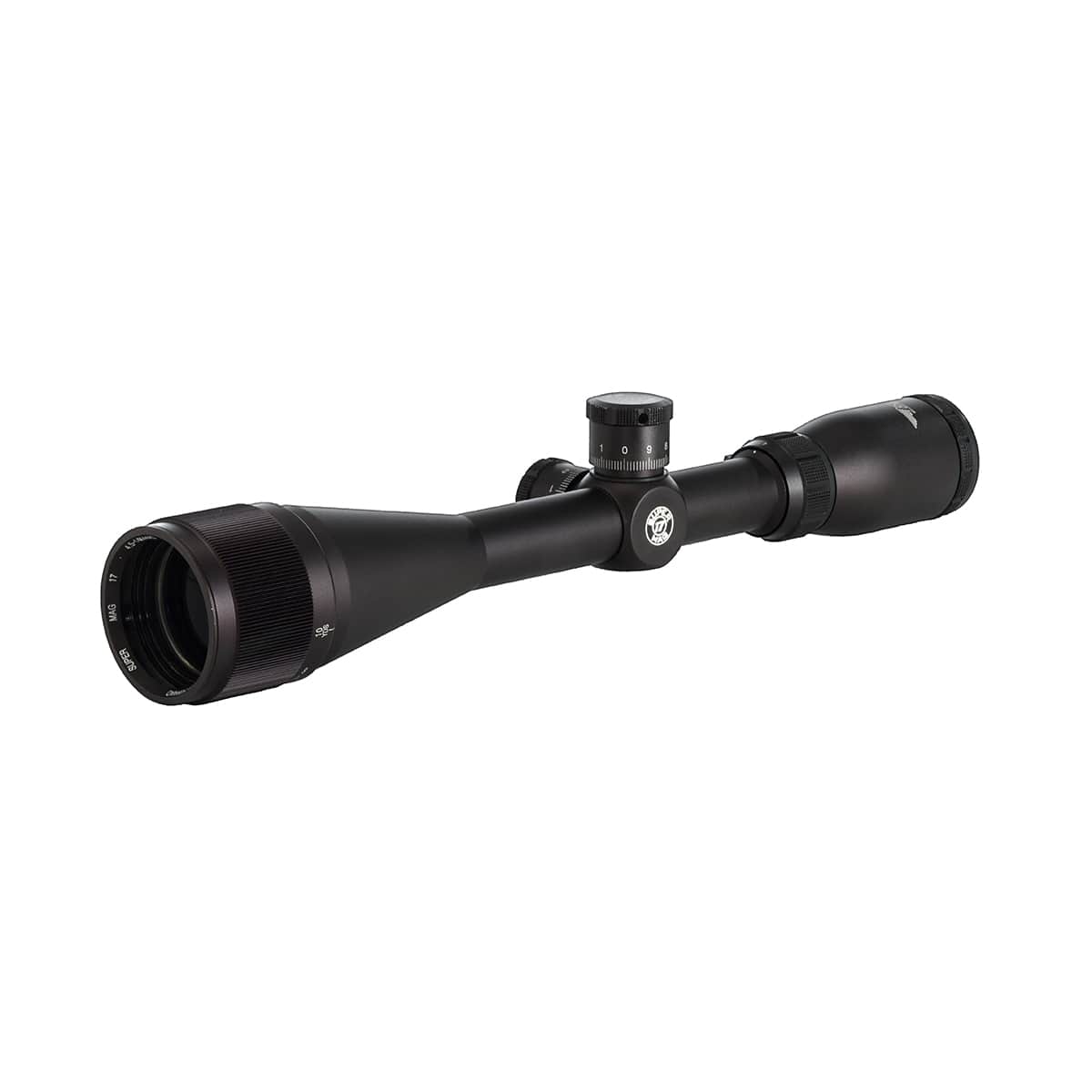

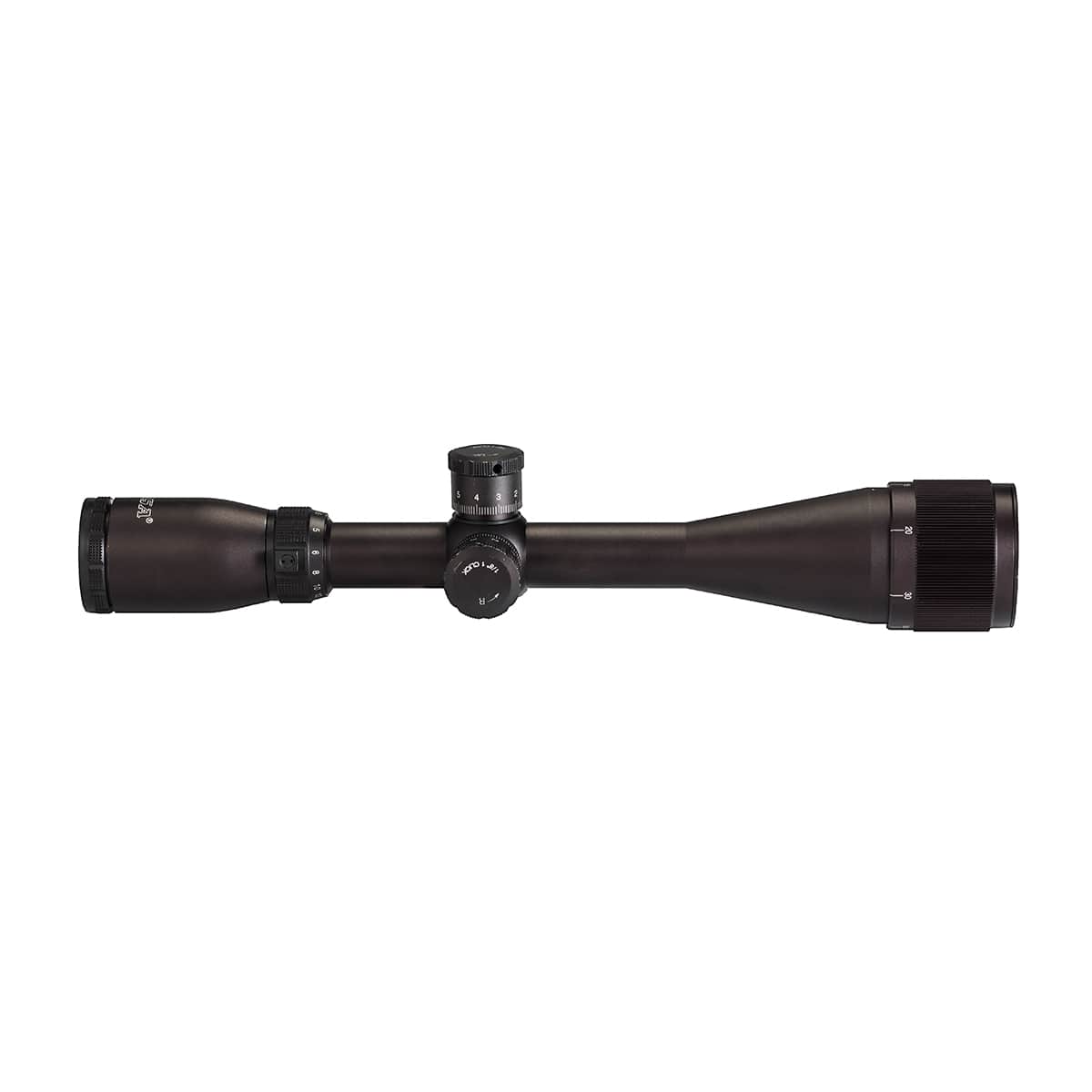

Designed specifically for the Winchester 17 Super Mag Cartridge and feature a patent pending drop compensation reticle engineered for the 20gr. and 25gr. bullet. The line includes 3 models including an illuminated Red, Green, and Blue Reticle version. All models are equipped with fast focus and an adjustable objective.

Magnification low: 4.5; Magnification high: 14

Objective lens diameter: 44 mm

Adjustment MOA: 1/8

Lens Material: Glass; Lens: Fully Coated

W/E Range: 35; Eye Relief: 3.7-4 inches

FOV LOW @ 100′ (ft): 21.6; FOV HIGH @ 100′ (ft): 7

PARALLAX SETTING (yds): 10 to Inf.

Reticle: .17 Super Mag Reticle

Shockproof, Fogproof, Waterproof

Tube diameter: 1″, one piece; Aluminum Construction

21.7 oz weight; 14.25 in length.
