DIMENSIONS (in)

    TECHNOLOGIES

Weight 19 oz
MAGNIFICATION LOW:

4X

MAGNIFICATION HIGH:

12X

OBJECTIVE LENS DIA. (mm):

44

ADJUSTMENT GRADUATION (MOA):

1/4

LENS COATING:

Fully Multi Coated

W/E ADJUSTMENT RANGE:

35

EYE RELIEF (Inches):

3.7 – 4

FOV LOW @ 100' (ft):

26.6

FOV HIGH @ 100' (ft):

8.5

PARALLAX SETTING (yds):

10 to Inf.

ADJUSTABLE OBJECTIVE:

Yes

SIDE PARALLAX ADJUSTMENT:

No

RETICLE TYPE:

Mil-Dot

ILLUMINATED COLORS:

Red / Green

BRIGHTNESS ADJUSTMENT:

5

FOGPROOF:

Yes

SHOCKPROOF:

Yes

WATERPROOF:

Yes

RINGS / MOUNT INCLUDED:

Yes

RING / MOUNT TYPE:

Two-Piece Dovetail

BATTERIES REQUIRED:

Yes

BATTERIES INCLUDED:

Yes

BATTERY CELL TYPE:

CR2032

COLOR:

Matte Black

WARRANTY:

Limited One Year

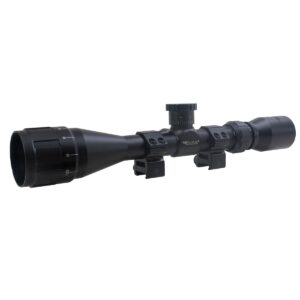

The new OUTLOOK series air rifle scopes were specifically designed to withstand the reverse recoil found in the most powerful air rifles. Feature rich, this series offers fully multi-coated lenses, fast focus, an adjustable objective, low profile zero-reset turrets, and a Mil-Dot reticle. This series comes standard with 2 piece dovetail rings.
Matte black finish. Waterproof, Shockproof and Fogproof

Download Product Manual
