DIMENSIONS (in)

    TECHNOLOGIES

Weight 1.7 lbs
MAGNIFICATION LOW:

3X
MAGNIFICATION HIGH:

9X
OBJECTIVE LENS DIA. (mm):

40
ADJUSTMENT GRADUATION (MOA):

1/4
LENS COATING:

Fully Coated
W/E ADJUSTMENT RANGE:

35
EYE RELIEF (Inches):

3
FOV LOW @ 100' (ft):

34.2
FOV HIGH @ 100' (ft):

11.5
PARALLAX SETTING (yds):

7.5 to Inf.
ADJUSTABLE OBJECTIVE:

Yes
SIDE PARALLAX ADJUSTMENT:

No
RETICLE TYPE:

30/30
FOGPROOF:

Yes
SHOCKPROOF:

Yes
WATERPROOF:

Yes
RINGS / MOUNT INCLUDED:

Yes
RING / MOUNT TYPE:

Two-Piece Dovetail
COLOR:

Matte Black
WARRANTY:

Limited One Year

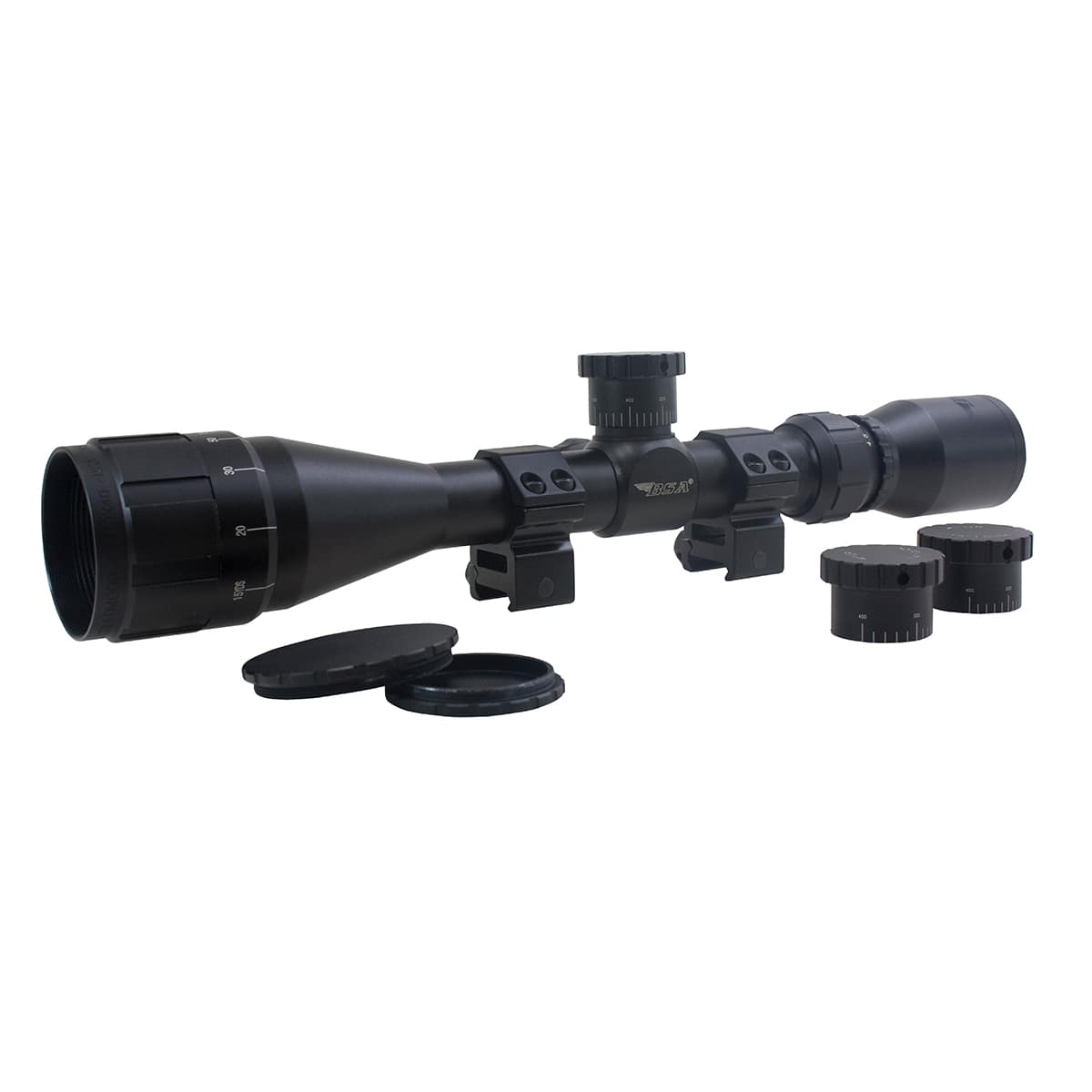

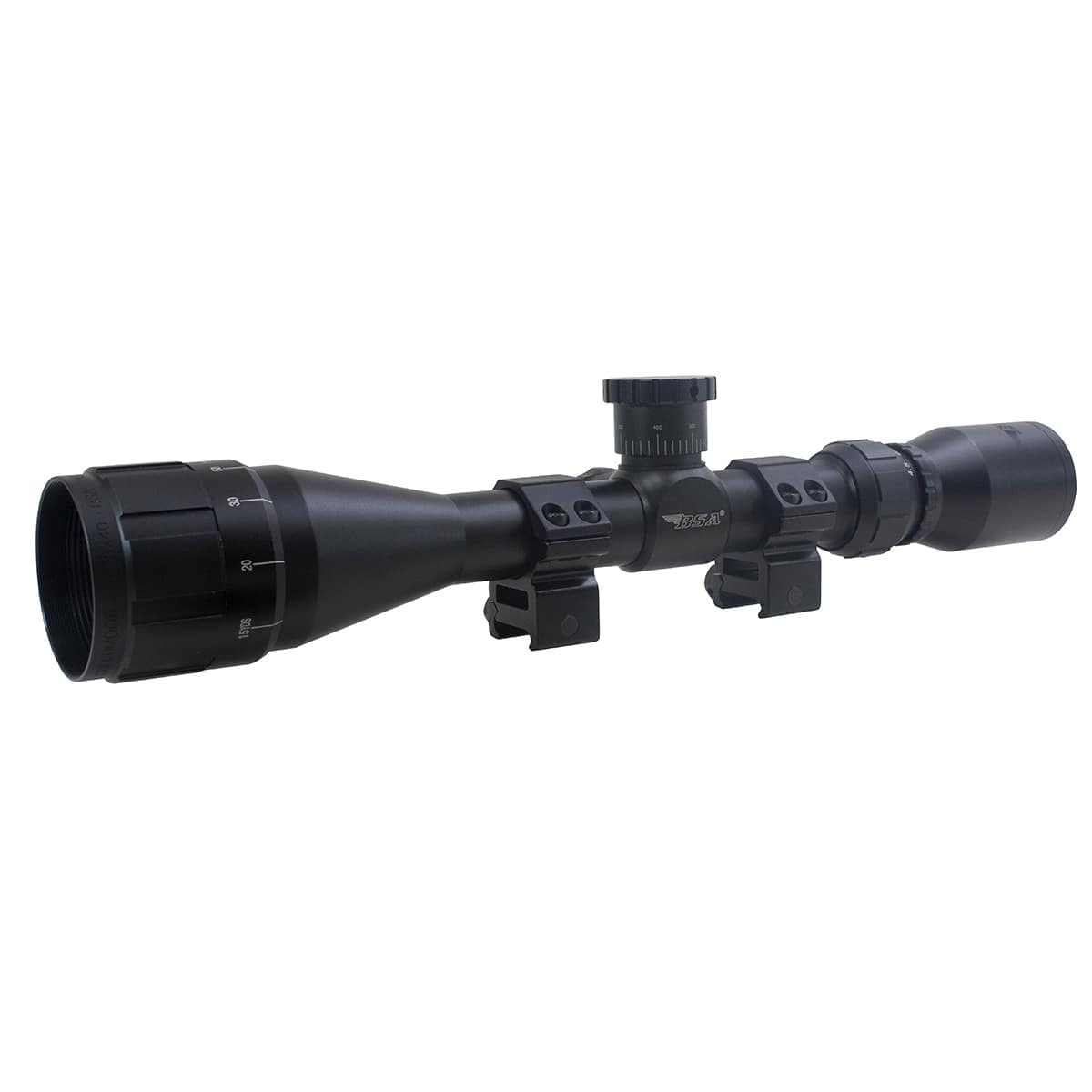

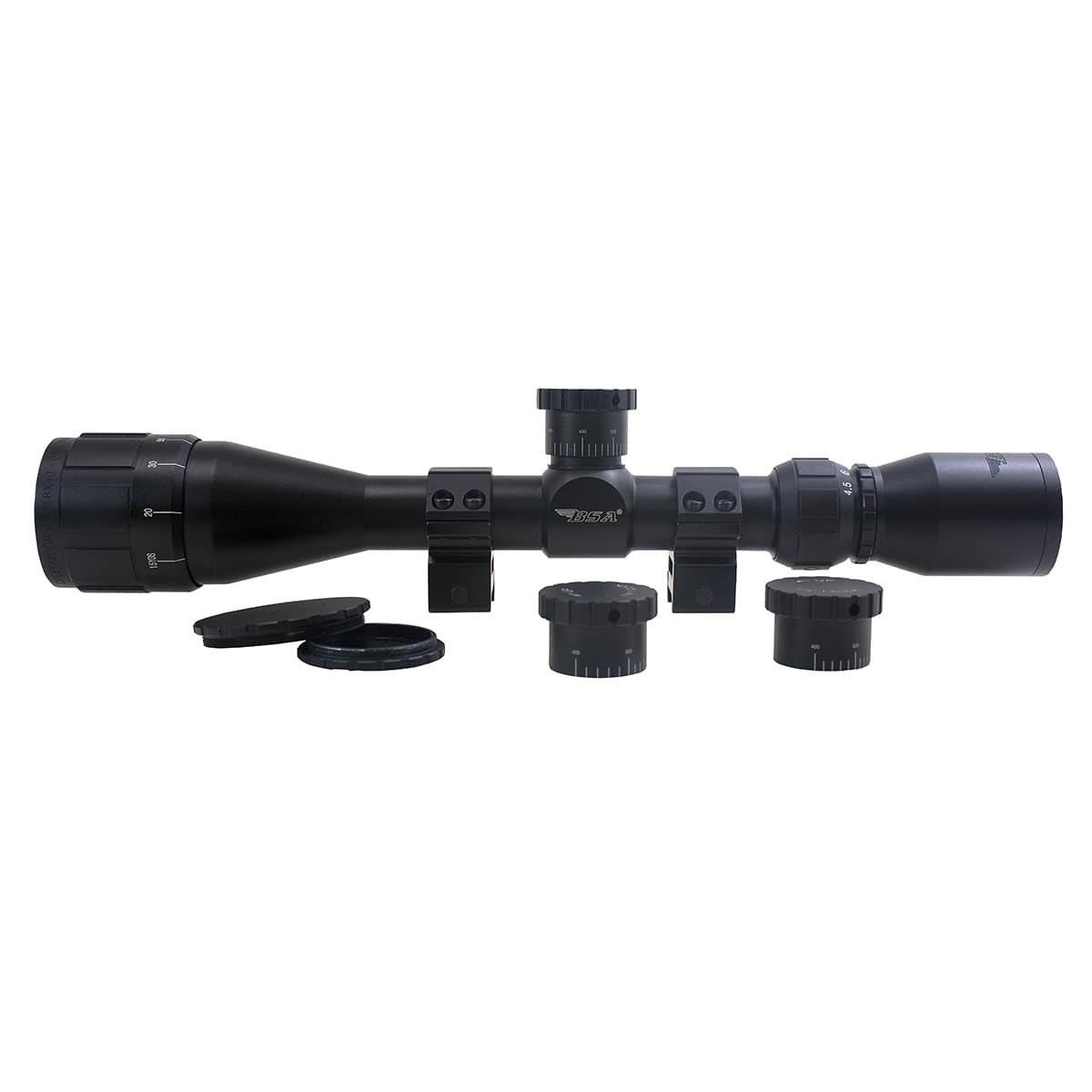

The BSA® Sweet .22 AO Rifle Scope is specifically designed for the .22LR. Complete with 3 ballistically calibrated turrets for 36gr, 38gr, and 40 gr cartridges, the Sweet 22 AO also features an adjustable objective, fully coated lenses, 30/30 reticle and 2 pc. dovetail rings
Matte black finish. Waterproof, shockproof and fogproof.

Magnification low: 3; Magnification high: 9

Objective lens diameter: 40 mm

Adjustment MOA: 1/4

Lens Material: Glass; Lens: Fully Coated

W/E Range: 35; Eye Relief: 3 inches

FOV LOW @ 100′ (ft): 34.2; FOV HIGH @ 100′ (ft): 11.5

PARALLAX SETTING (yds): 7.5 to Inf.

Reticle: 30/30

Shockproof, Fogproof, Waterproof

Tube diameter: 1″, one piece; Aluminum Construction
