DIMENSIONS (in)

    TECHNOLOGIES

Weight 1.75 lbs
MAGNIFICATION LOW:

4X

MAGNIFICATION HIGH:

12X

OBJECTIVE LENS DIA. (mm):

40

ADJUSTMENT GRADUATION (MOA):

1/4

LENS COATING:

Fully Coated

W/E ADJUSTMENT RANGE:

35

EYE RELIEF (Inches):

3

FOV LOW @ 100' (ft):

40

FOV HIGH @ 100' (ft):

10

PARALLAX SETTING (yds):

7.5 to Inf.

ADJUSTABLE OBJECTIVE:

Yes

SIDE PARALLAX ADJUSTMENT:

No

RETICLE TYPE:

30/30

FOGPROOF:

Yes

SHOCKPROOF:

Yes

WATERPROOF:

Yes

RINGS / MOUNT INCLUDED:

Yes

RING / MOUNT TYPE:

Two-Piece Weaver

COLOR:

Matte Black

WARRANTY:

Limited One Year

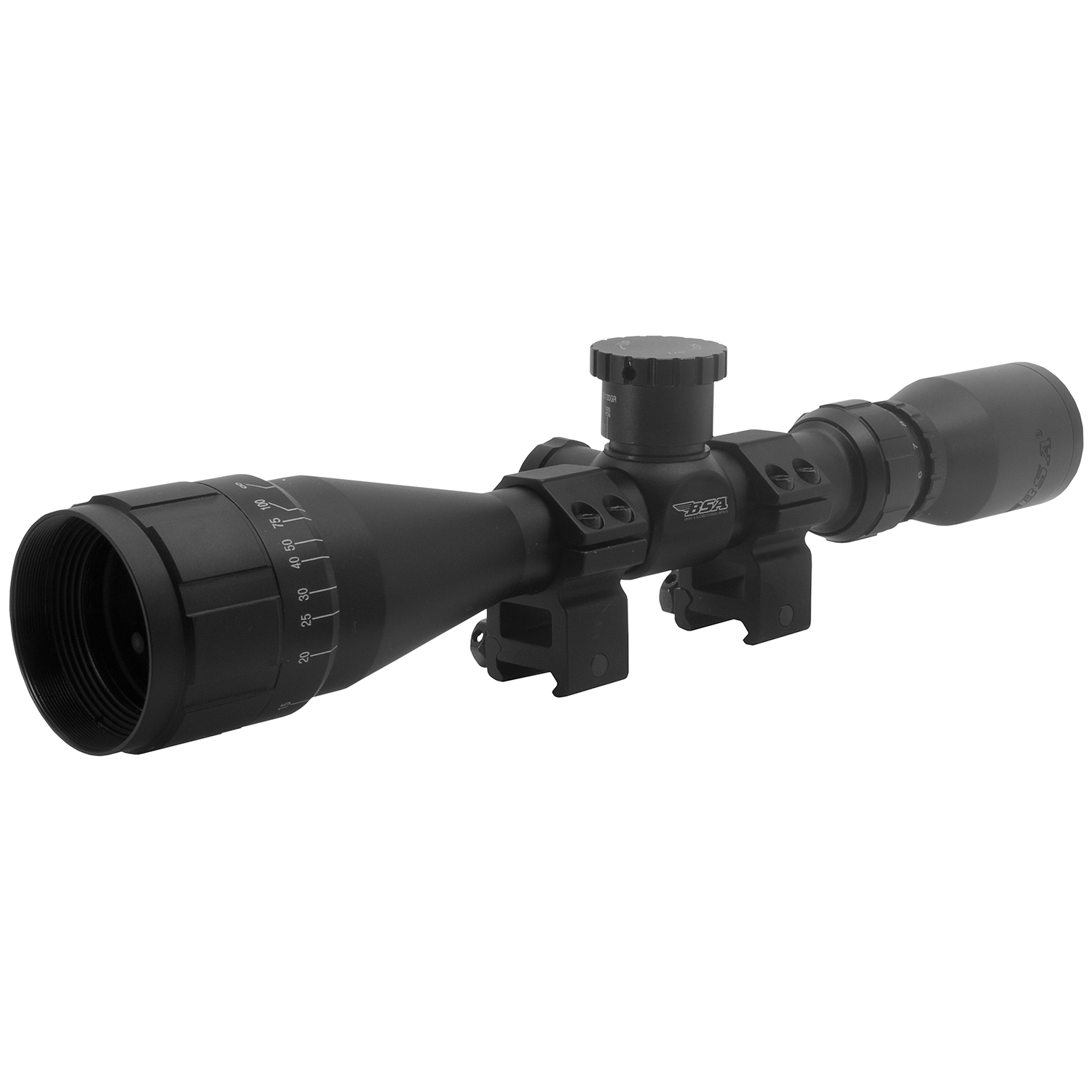

The BSA® Sweet 30-06 AO Rifle Scope is specifically designed for the .30-06 rifles. Complete with 3 ballistically calibrated turrets for 150gr, 165gr, and 180 gr ammunition, the Sweet .30-06 AO also features an adjustable objective, fully coated glass lenses, 30/30 reticle and 2 pc. weaver rings
Matte black finish. Waterproof, shockproof and fogproof.

Magnification low: 4; Magnification high: 12

Objective lens diameter: 40 mm

Adjustment MOA: 1/4

Lens Material: Glass; Lens: Fully Coated

W/E Range: 35; Eye Relief: 3 inches

FOV LOW @ 100′ (ft): 40; FOV HIGH @ 100′ (ft): 10

PARALLAX SETTING (yds): 7.5 to Inf.

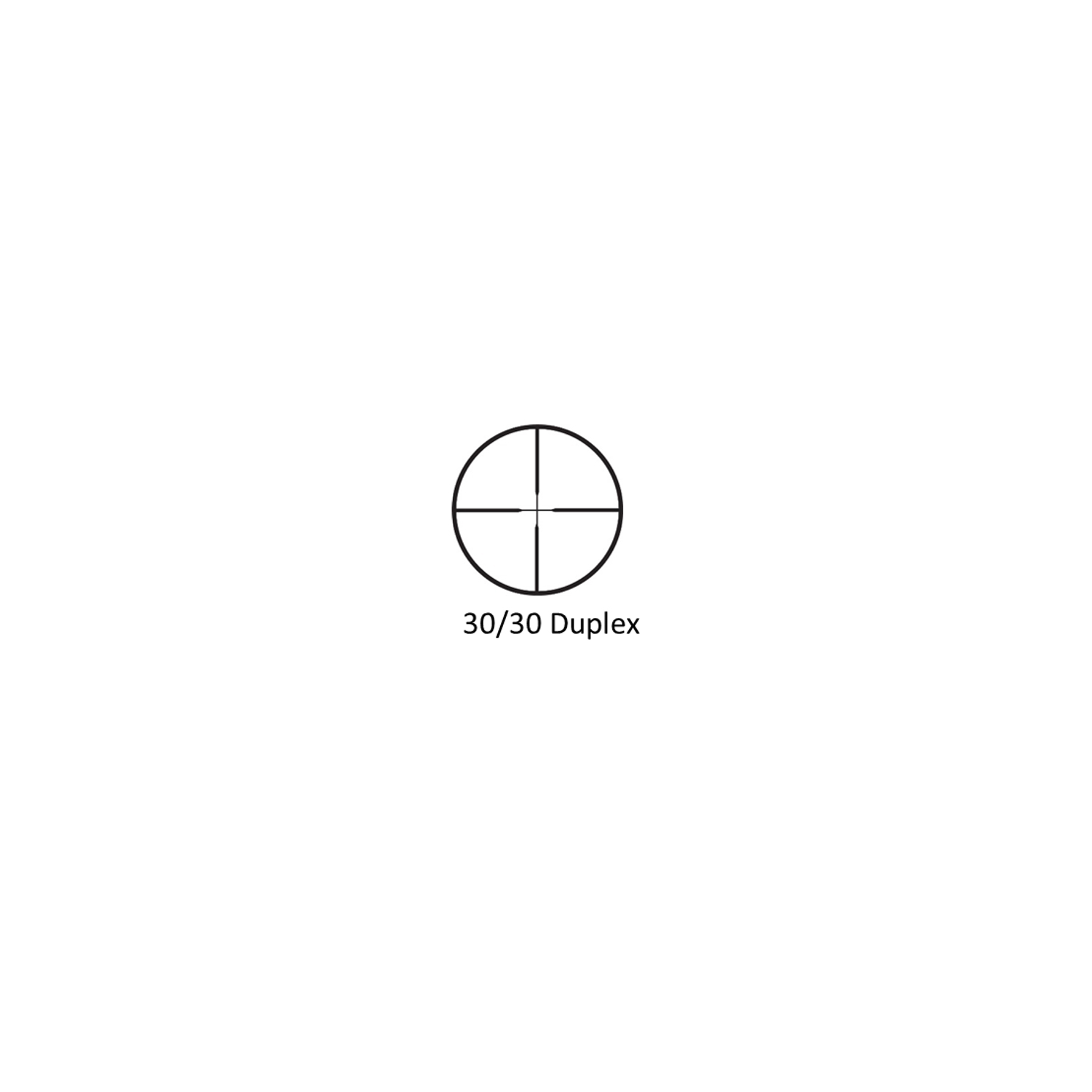

Reticle: 30/30

Shockproof, Fogproof, Waterproof

Tube diameter: 1″, one piece; Aluminum Construction

22.30 oz weight; 12.9 in length.
