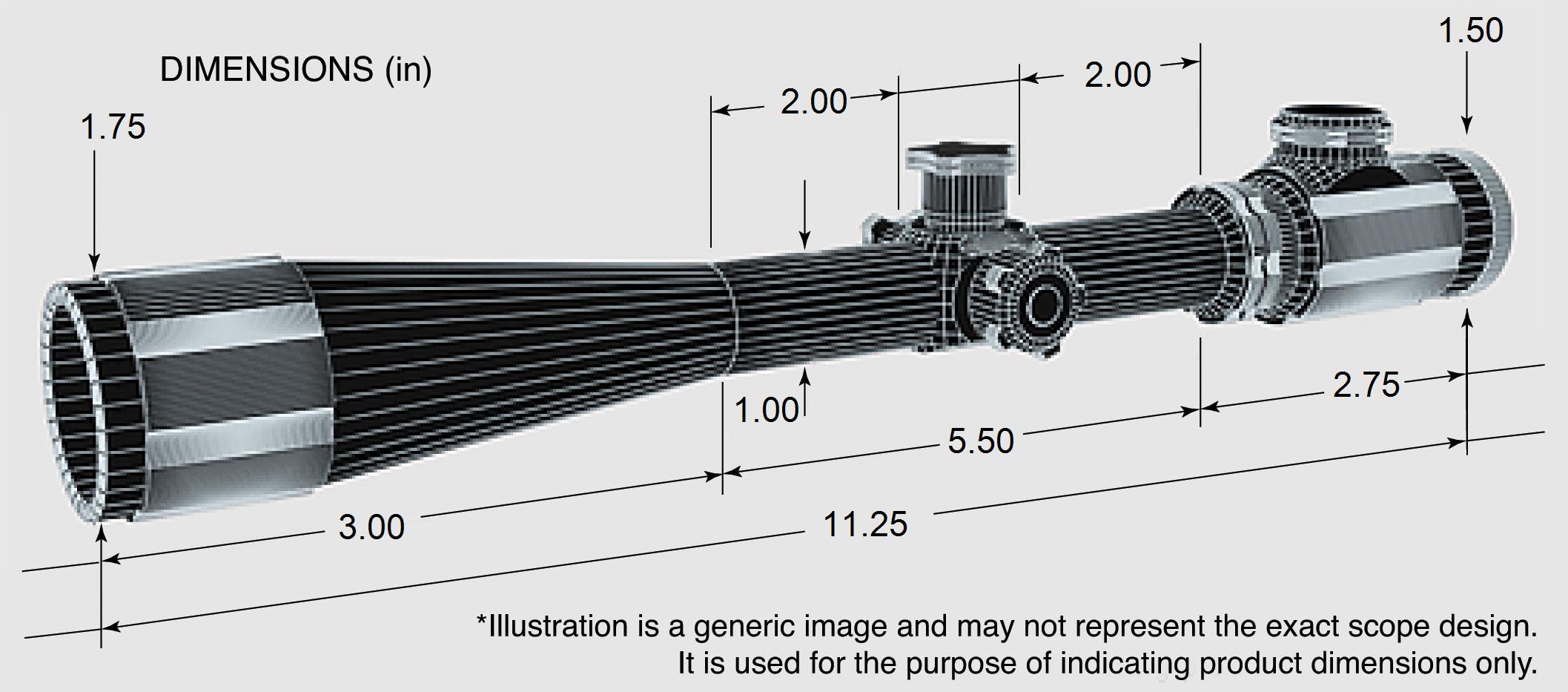

DIMENSIONS (in)

    TECHNOLOGIES

Weight 1.35 lbs
MAGNIFICATION LOW:

4X

MAGNIFICATION HIGH:

N/A

OBJECTIVE LENS DIA. (mm):

32

ADJUSTMENT GRADUATION (MOA):

1/4

LENS COATING:

Fully Multi Coated

W/E ADJUSTMENT RANGE:

35

EYE RELIEF (Inches):

3.45

FOV LOW @ 100' (ft):

30.2

PARALLAX SETTING (yds):

7.5 to Inf.

ADJUSTABLE OBJECTIVE:

No

SIDE PARALLAX ADJUSTMENT:

No

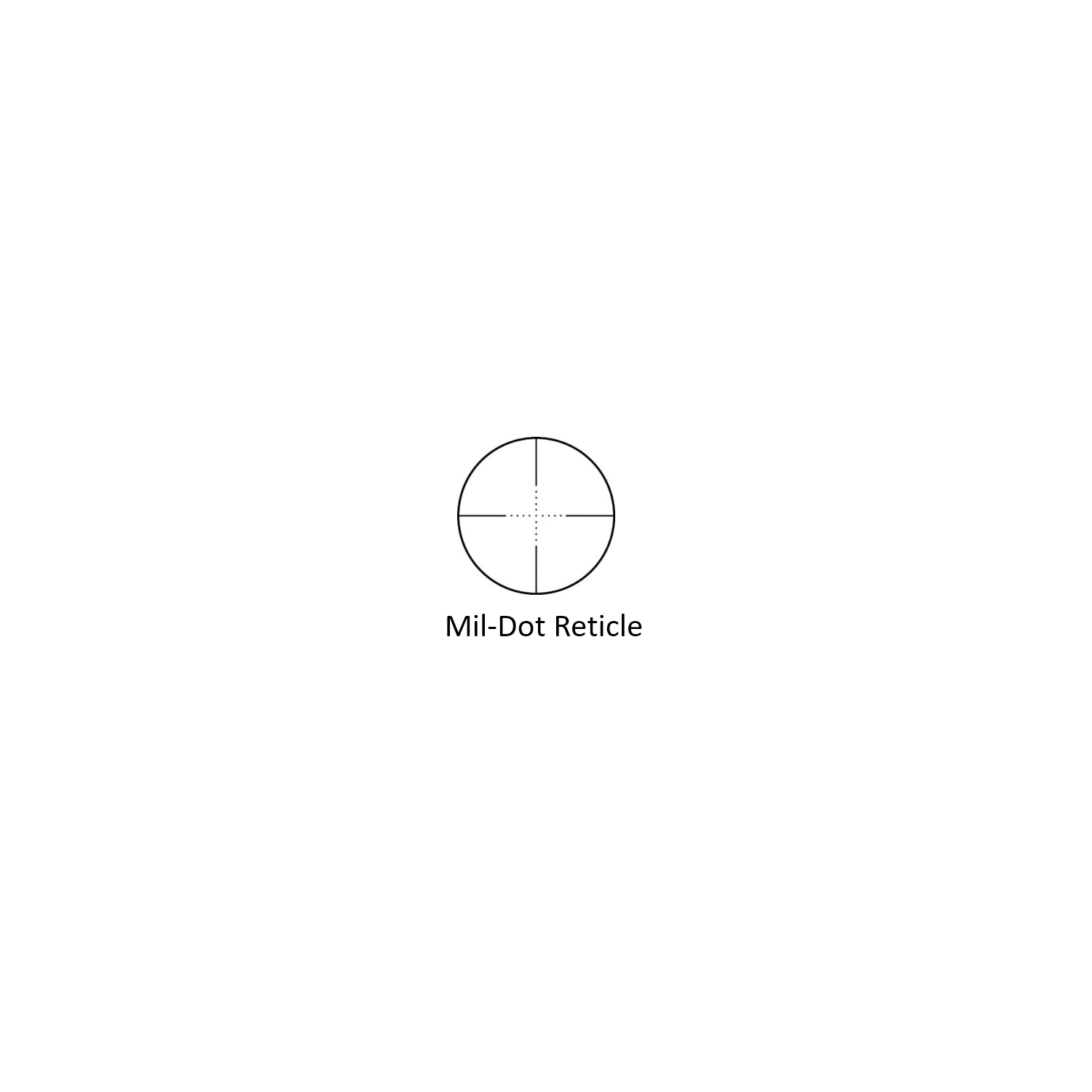

RETICLE TYPE:

Mil-Dot

FOGPROOF:

Yes

SHOCKPROOF:

Yes

WATERPROOF:

Yes

RINGS / MOUNT INCLUDED:

Yes

RING / MOUNT TYPE:

Two-Piece Dovetail

COLOR:

Matte Black

WARRANTY:

Limited One Year

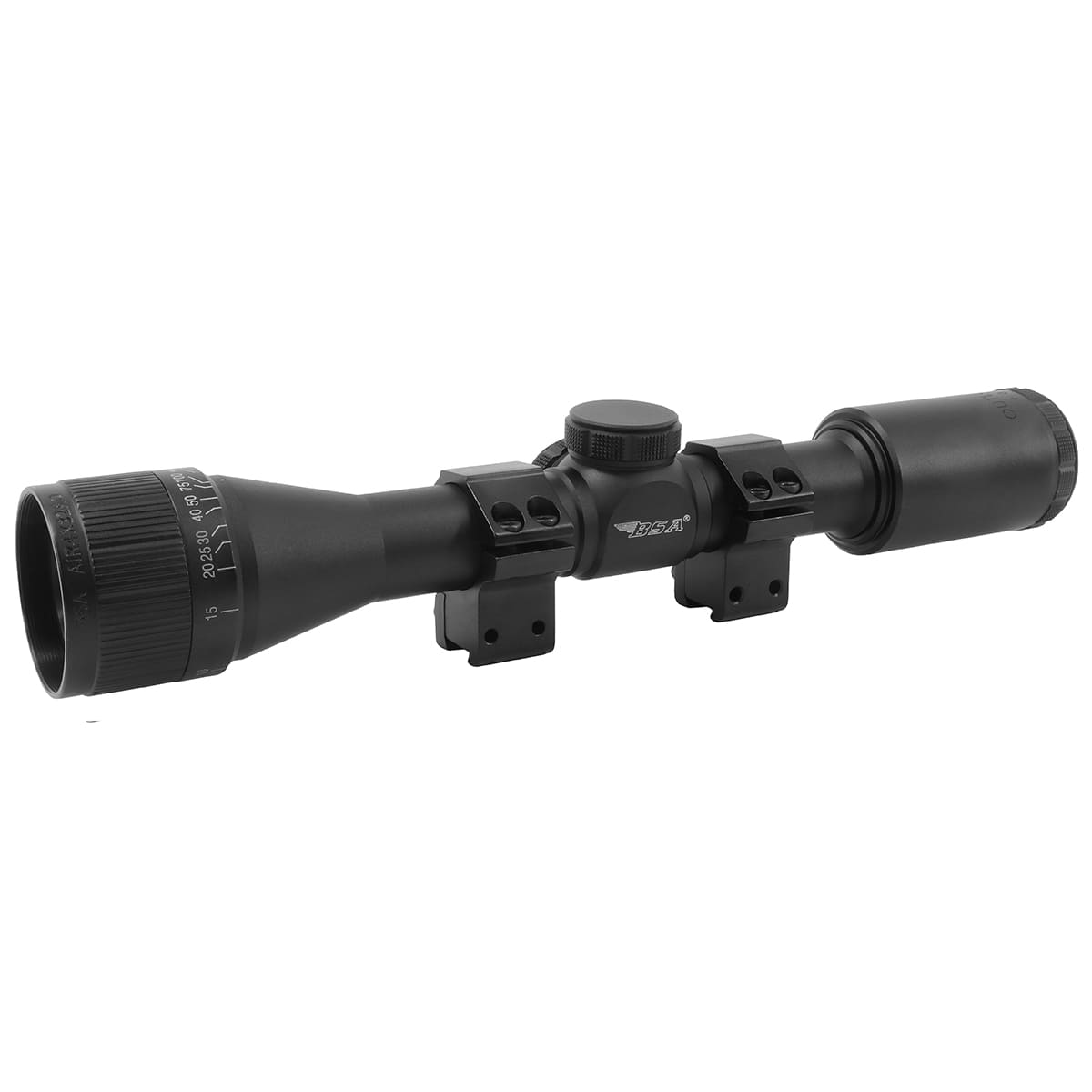

The new OUTLOOK series air rifle scopes were specifically designed to withstand the reverse recoil found in the most powerful air rifles. Feature rich, this series offers fully multi-coated lenses, fast focus, an adjustable objective, low profile zero-reset turrets, and a Mil-Dot reticle. This series comes standard with 2 piece dovetail rings.
Matte black finish. Waterproof, Shockproof and Fogproof.

Magnification low: 4; Magnification high: 4

Objective lens diameter: 32 mm

Adjustment MOA: 1/4

Lens Material: Glass; Lens: Fully Multi-Coated

W/E Range: 35; Eye Relief: 3.45 inches

FOV LOW @ 100′ (ft): 30.2; FOV HIGH @ 100′ (ft): N/A

PARALLAX SETTING (yds): 7.5 to Inf.

Reticle: Mil-Dot

Shockproof, Fogproof, Waterproof

Tube diameter: 1″, one piece; Aluminum Construction. Adjustable Objective.

11.8 oz weight; 10.85 in length

Download Product Manual
