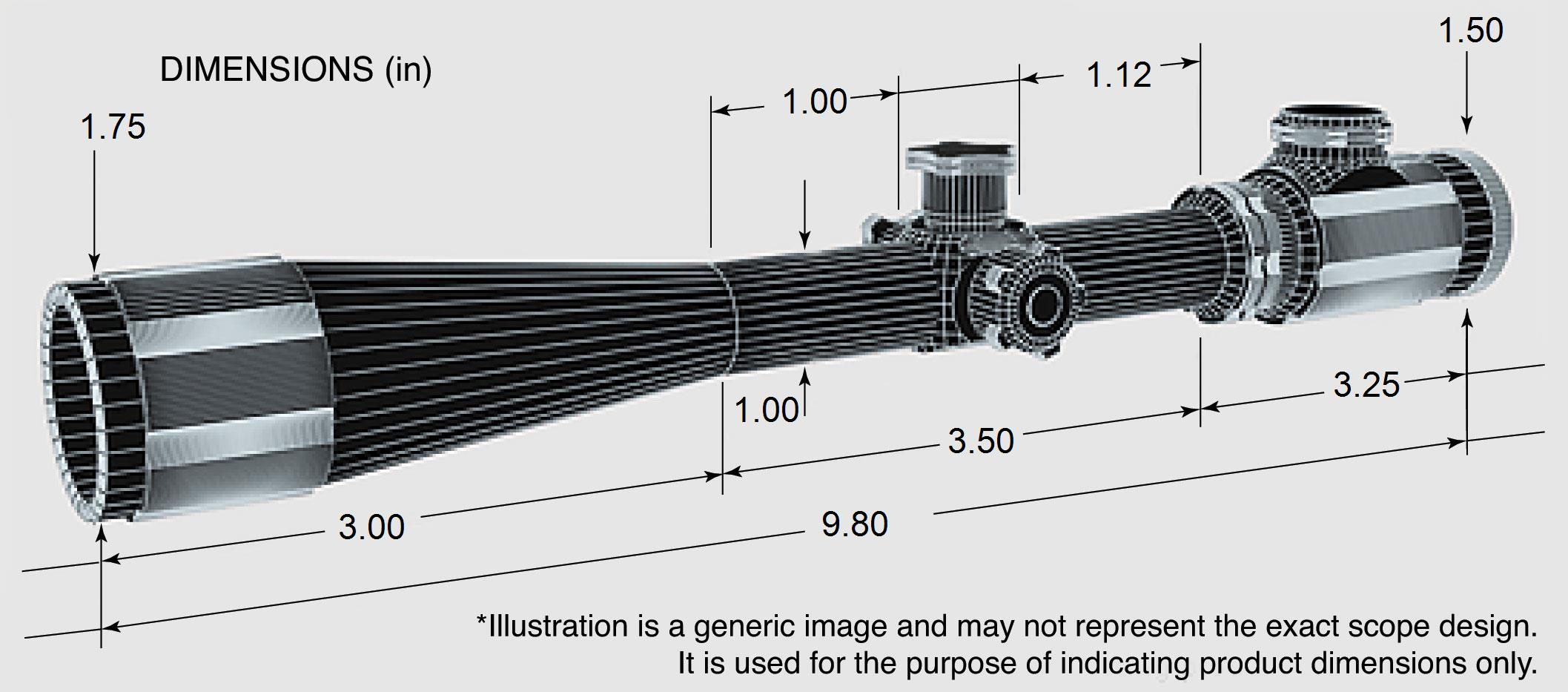

DIMENSIONS (in)

    TECHNOLOGIES

Weight 1.4960000000000002 lbs
MAGNIFICATION LOW:

2X

MAGNIFICATION HIGH:

7X

OBJECTIVE LENS DIA. (mm):

32

ADJUSTMENT GRADUATION (MOA):

1/2

LENS COATING:

Fully Coated

W/E ADJUSTMENT RANGE:

35

EYE RELIEF (Inches):

3

FOV LOW @ 100' (ft):

55.6

FOV HIGH @ 100' (ft):

15.7

PARALLAX SETTING (yds):

7.5 to Inf.

ADJUSTABLE OBJECTIVE:

Yes

SIDE PARALLAX ADJUSTMENT:

No

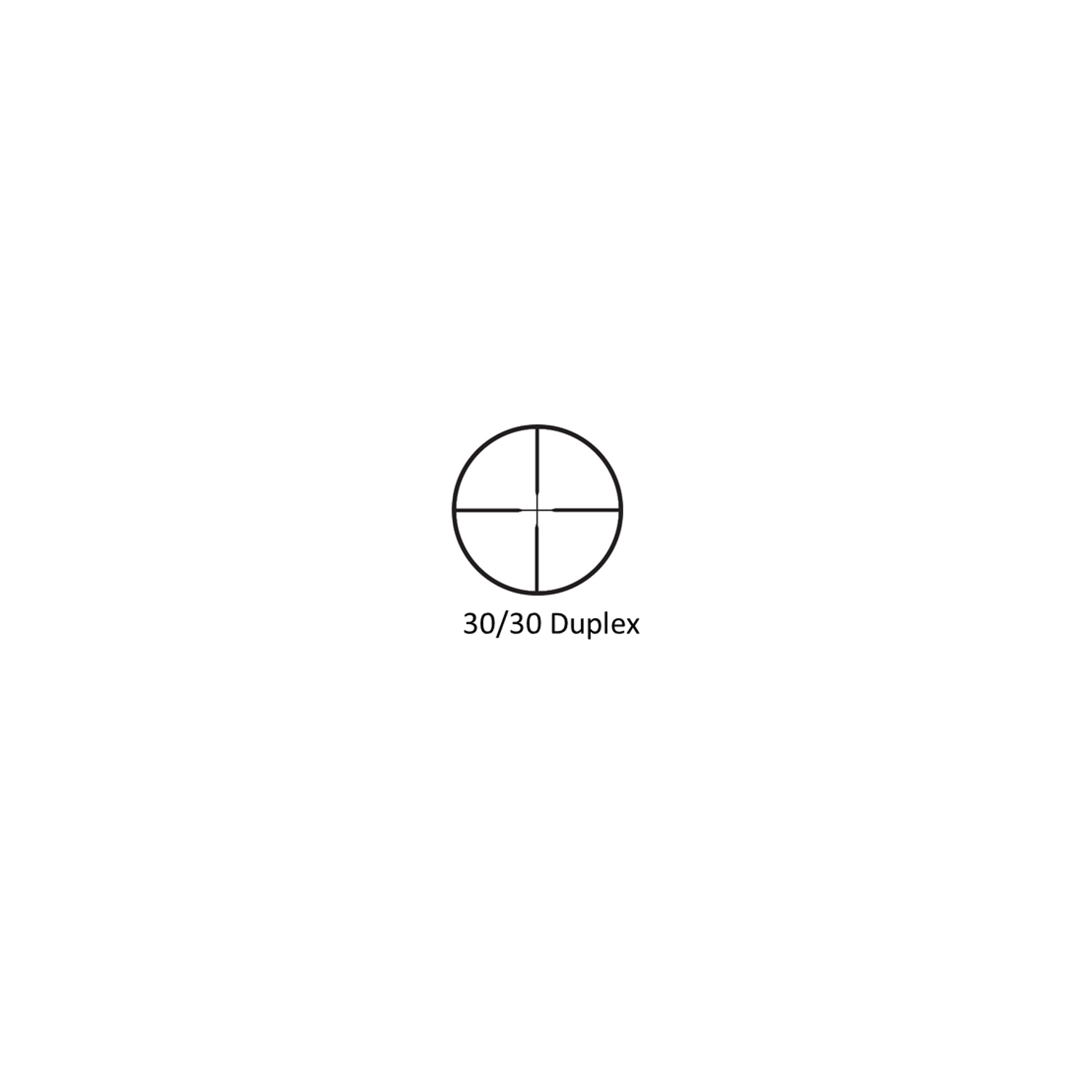

RETICLE TYPE:

30/30

FOGPROOF:

Yes

SHOCKPROOF:

Yes

WATERPROOF:

Yes

RINGS / MOUNT INCLUDED:

Yes

RING / MOUNT TYPE:

Two-Piece Dovetail

COLOR:

Matte Black

WARRANTY:

Limited One Year

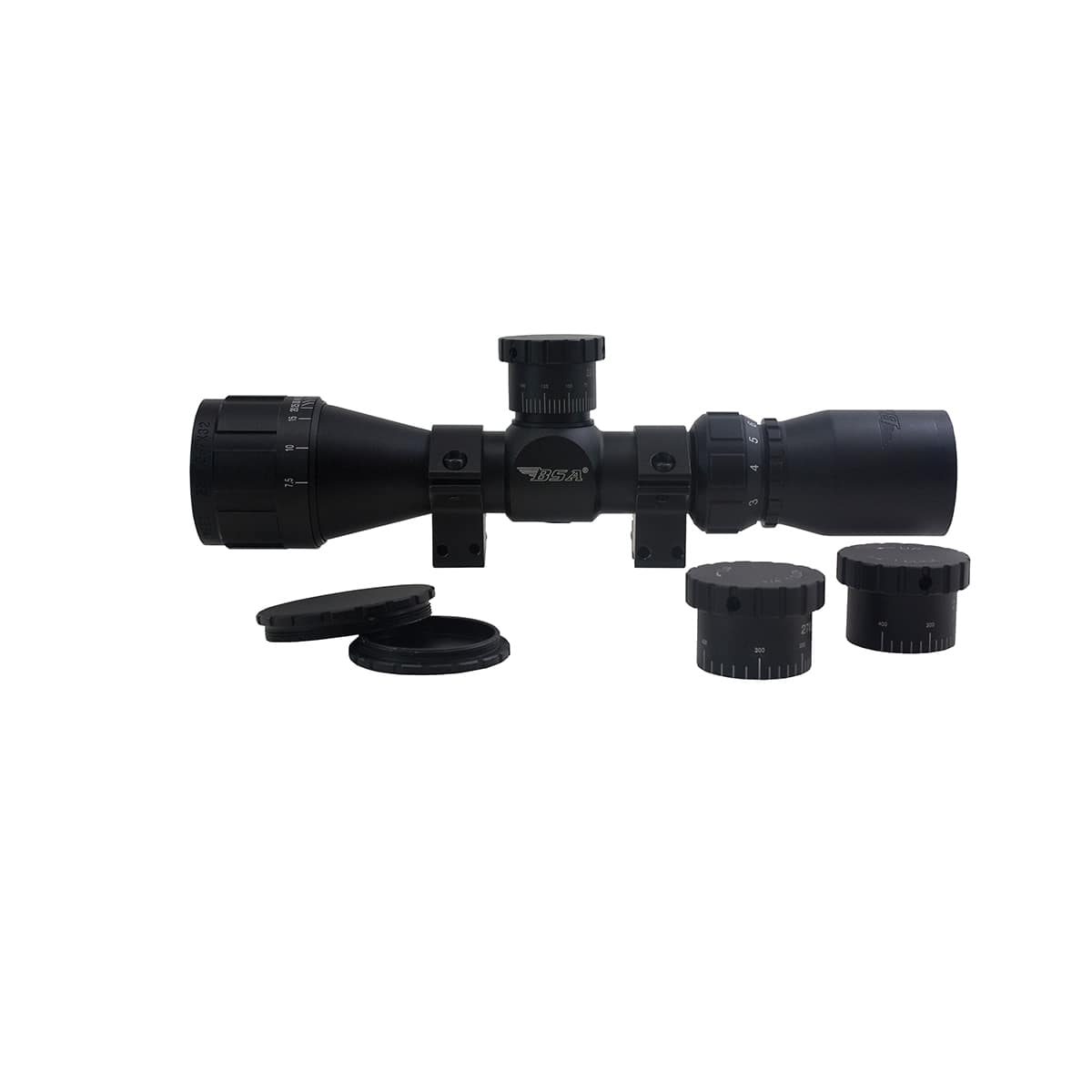

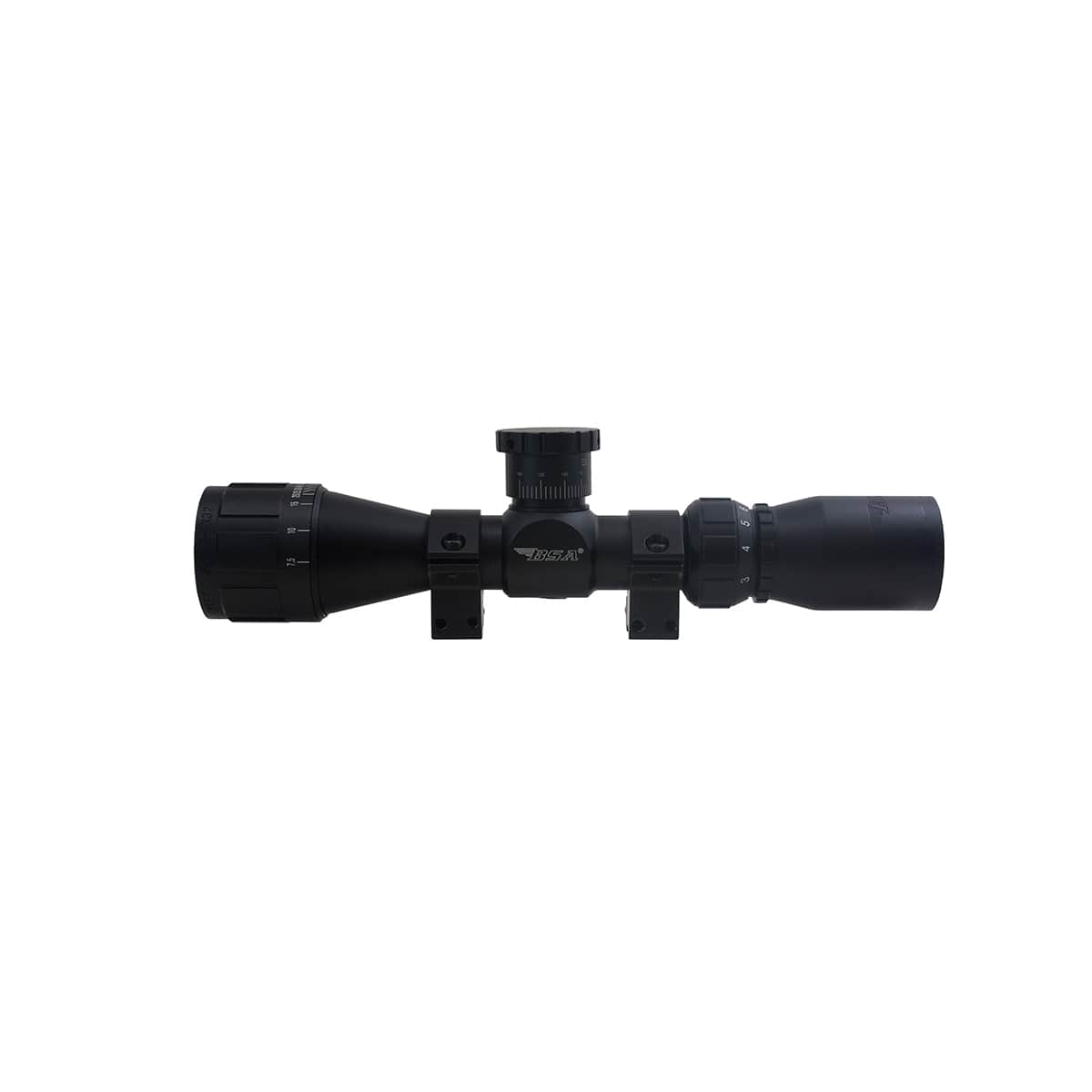

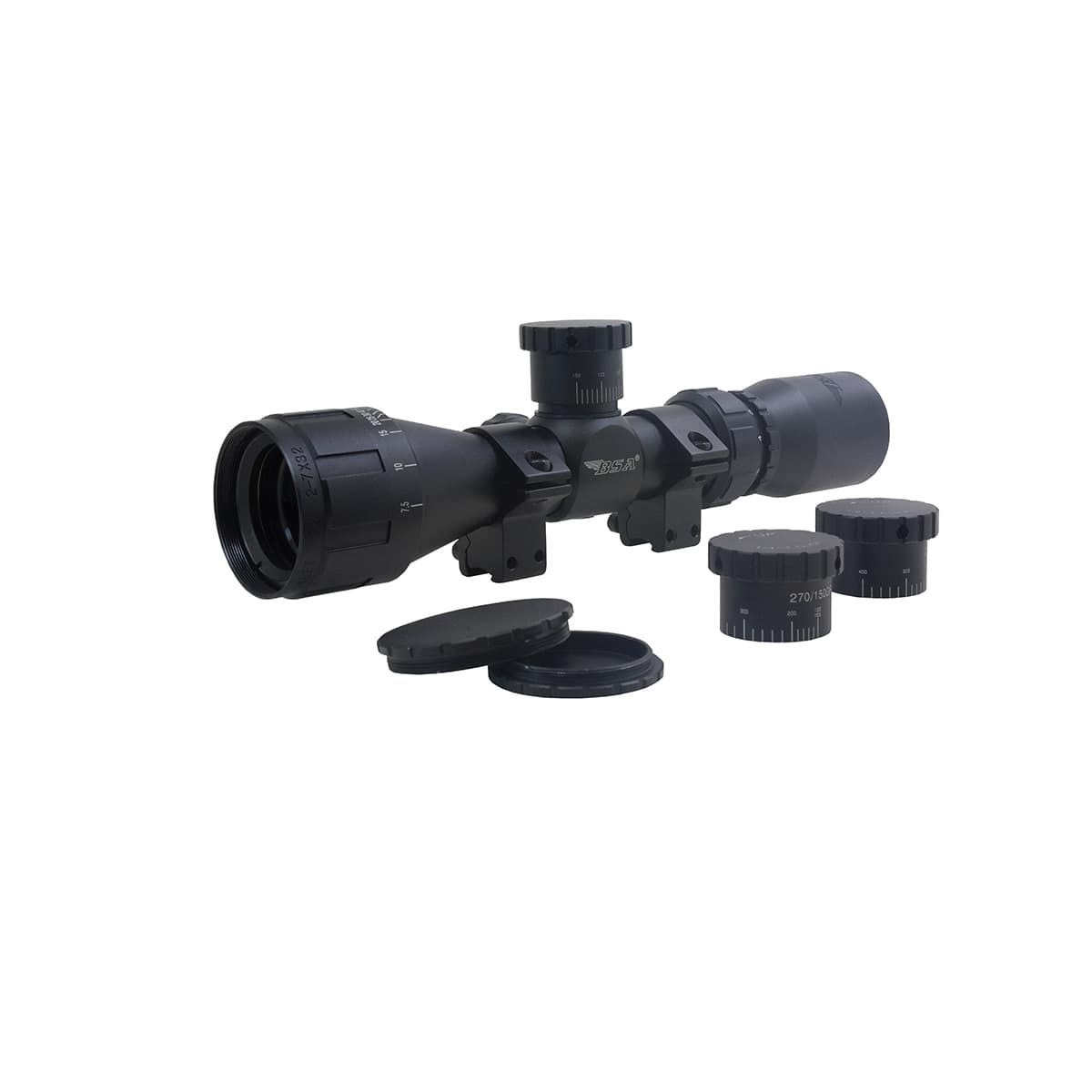

The BSA® Sweet .22 AO Compact provides all the features of standard Sweet AO scopes in a package designed specifically for the Ruger 10/22 and other small frame .22 rifles. Complete with 3 ballistically calibrated turrets for 36gr, 38gr, and 40 gr cartridges, the Sweet 22 AO Compact also features an adjustable objective, fully coated lenses, 30/30 reticle and 2 pc. dovetail rings
Matte black finish. Waterproof, shockproof and fogproof.

Magnification low: 2; Magnification high: 7

Objective lens diameter: 32 mm

Adjustment MOA: 1/2

Lens Material: Glass; Lens: Fully Coated

W/E Range: 35; Eye Relief: 3 inches

FOV LOW @ 100′ (ft): 55.6; FOV HIGH @ 100′ (ft): 15.7

PARALLAX SETTING (yds): 7.5 to Inf.

Reticle: 30/30

Shockproof, Fogproof, Waterproof

Tube diameter: 1″, one piece; Aluminum Construction

17.5 oz weight; 9.5 in length.
